Charging your Toyota RAV4 Prime with a Level 2 charger takes between 2.5 and 4.5 hours. The exact time depends on whether your vehicle is equipped with a 3.3 kW or 6.6 kW onboard charger. The faster 6.6 kW charger handles a full charge in roughly 2.5 hours, while the older 3.3 kW version takes about 4.5 hours. Upgrading your home setup makes daily driving on electric power much more convenient.
Quick Answer
- A Level 2 (240V) charger takes roughly 2.5 hours to fully charge a RAV4 Prime equipped with a 6.6 kW onboard charger.
- If your RAV4 Prime has the older 3.3 kW onboard charger, a full Level 2 charge will take about 4.5 hours.
- Starting with the 2023 model year, all RAV4 Prime trims (SE and XSE) include the faster 6.6 kW charger as standard equipment.
- You will need a 240-volt outlet and a Level 2 charging station capable of at least 32 amps to get the fastest charging speeds at home.
Understanding Level 2 Charging for the RAV4 Prime
If you want to charge your Toyota RAV4 Prime as fast as possible, you need a Level 2 charger. A Level 2 charging station uses a 240-volt electrical circuit—similar to the outlet used by a heavy appliance like a clothes dryer. This setup drastically reduces your charging time compared to the standard 120-volt Level 1 cord that comes with the car, which can take up to 12 hours.
With a Level 2 station and a 6.6 kW onboard charger, you gain about 17 to 18 miles of electric range per hour of charging. To get these speeds at home, you need to install a 240-volt outlet and use a charger rated for at least 32 amps. This ensures your battery is fully replenished every morning or between quick afternoon errands.
Charging Times for the RAV4 Prime: Level 2 Overview
Upgrading to a Level 2 charger saves you hours of downtime. Depending on the model year and trim of your RAV4 Prime, you will gain roughly 9 to 18 miles of range per hour plugged in.
[Products Worth Considering]
❤ [9X FASTER Than Portable Level 1 EV Charger, Equipped with Nema 14-50 plug, Install The 6AWG Power Outlet Cord]: Provides up to 46 m/h charging speed via hardwired connection (48 amp) or up to 38 m/h via the NEMA 14-50 plug (40 amp). Professional installation recommended for optimal safety and performance. (1.The input side belongs to the electrician electric automobile regulation scope, need to use three 6AWG cable wires for 48A; 2.The charging cable belongs to the automotive connector certification standard, so the 8AWG cable can meet the 48A.)
[Up to 9x Faster Charging Speed]: Provides up to 46 miles/hour charging speed via hardwired connection (48 amp – up to 9x faster than a standard wall outlet) or up to 38 miles/hour via the NEMA 14-50 plug (40 amp). Professional installation recommended for optimal safety and performance. [Install The Power Outlet Cord]: No smaller than 8AWG if charge 40-48A, we suggest 6AWG cord.(1.The input side is belongs to the electrician electric automobile regulation scope, need to use three 6AWG cable wires for 48A; 2.The charging cable belongs to the automotive connector certification standard, so the 8AWG cable can meet the 48A.)
❤ [Equipped with Nema 14-50 plug, Compatible with 110-120V Nema 5-15p to 14-50r EV Adapter(Not packaged) or the other EV Adapter Cable]: Suggest install the 240V Nema 14-50 plug-in socket. [Kindly Note When Using the 5-15P Adapter]: 1. The RV Adapter cable doesn't work for EV chargers, please order the correct EV adapter cable. 2. It will become slow level 1 ev charging and some cars may drop to 12A, the max charging rate is 1.32-1.8kW(110V*12A-120V*15A).
Level 2 Charger Benefits
While the standard 120-volt outlet works fine for drivers who only charge overnight, switching to a Level 2 charger provides several clear advantages:
- Faster Turnaround: Drops your charge time from 12 hours down to 2.5 to 4.5 hours.
- More Usable Daily Range: If you run errands in the morning, you can plug in and have a full battery again by the afternoon.
- Access to Public Stations: Most public charging stations are Level 2, allowing you to top off quickly while shopping or working.
- Future EV Readiness: Installing a 240V circuit now prepares your garage for fully electric vehicles you might buy in the future.
Charging Time Comparisons
Your exact charging speed depends entirely on the onboard charger built into your car. Older, standard models with a 3.3 kW charger will finish in about 4.5 hours. Models equipped with the 6.6 kW charger finish in 2.5 hours.
| Charger Type | Charging Time | Added Range per Hour |
|---|---|---|
| 3.3 kW Charger | ~4.5 hours | 9-10 miles |
| 6.6 kW Charger | ~2.5 hours | 17-18 miles |
Optimal Charging Practices
To keep your battery healthy and keep electricity costs low, try these charging habits:
- Charge overnight during off-peak hours: Many utility companies offer cheaper electricity rates late at night.
- Avoid letting the battery sit empty: Plug the car in regularly rather than driving it to zero electric range every single day.
- Use smart scheduling: Most modern Level 2 chargers have phone apps that let you schedule exactly when the charging starts.
Differences in Charging Times: 3.3kW vs. 6.6kW
The biggest factor in your charging speed isn’t just the wall unit you buy—it’s the hardware inside the car itself. The RAV4 Prime accepts either 3.3 kW or 6.6 kW of power.
[Products Worth Considering]
PLUG-IN, NO ELECTRICIAN: EVIQO Level 2 EV charger with a max output of 40A on a dedicated 50A / 240V circuit fully recharges most EVs overnight. This wall-mounted plug-in model requires an EV-graded 4-prong NEMA 14-50 outlet (same style as an RV or range outlet – NOT a dryer outlet). Verify your vehicle's connector type and home electrical setup before ordering.
HARDWIRED, ELECTRICIAN REQUIRED: EVIQO Level 2 EV Charger delivers up to 48A output on a dedicated 60A / 240V circuit, fully recharging most EVs overnight. Licensed electrician installation required (per National Electrical Code). Need more power? Set up DIP switches to positions 4 & 5 to unlock 50A output – requires a dedicated 70A circuit. Verify your vehicle's connector type and home electrical setup before ordering.
❤ [Equipped with Nema 14-50 plug 240V, Compatible with 110-120V Nema 5-15p to 14-50r EV Adapter(Not packaged) or the other EV Adapter Cable]: Suggest install the 240V Nema 14-50 plug-in socket. [Kindly Note When Using the 5-15P Adapter]: 1. The RV Adapter cable doesn't work for EV chargers, please order the correct EV adapter cable. 2. It will become slow level 1 ev charging and some cars may drop to 12A, the max charging rate is 1.32-1.8kW(110V*12A-120V*15A).
Charging Time Comparison
The difference between the two onboard chargers is significant if you drive multiple times a day:
- 3.3 kW Charger: Caps your charging speed, taking about 4.5 hours to refill the battery on a 240V circuit.
- 6.6 kW Charger: Doubles the power intake, finishing a full charge in roughly 2.5 hours.
Onboard Charger Capacities
Toyota updated the hardware for this vehicle over time. For the 2021 and 2022 model years, the SE trim came standard with the 3.3 kW charger. The 6.6 kW charger was only available as part of an expensive Premium Package on the XSE trim. However, starting with the 2023 model year, Toyota made the 6.6 kW charger standard across all trims.
| Model Year & Trim | Onboard Charger | Charging Time (Full) | Range per Hour |
|---|---|---|---|
| 2021-2022 SE & base XSE | 3.3 kW | ~4.5 hours | 9-10 miles |
| 2021-2022 XSE (Premium Pkg) | 6.6 kW | ~2.5 hours | 17-18 miles |
| 2023+ All Trims | 6.6 kW | ~2.5 hours | 17-18 miles |
Why Level 2 Charging Benefits Daily Drivers
If you commute daily, a Level 2 charger makes it much easier to rely on the Toyota RAV4 Prime’s 42-mile electric range rather than using gas. Because the car recharges in just a few hours, you can drive to work on electric power, come home, plug in, and have enough battery to drive to dinner or a kid’s soccer game later that evening without the gas engine ever turning on.

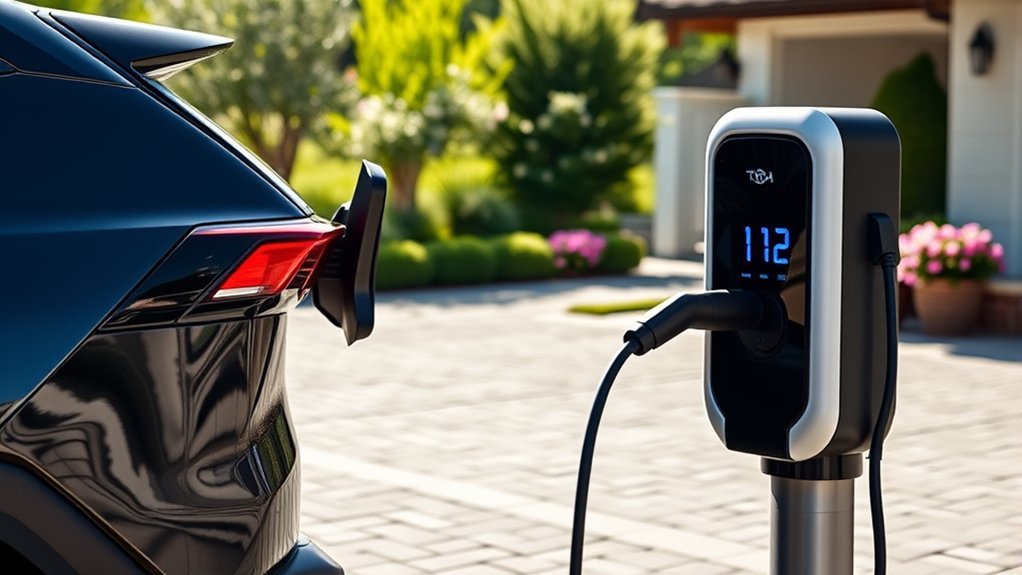

How to Choose the Best Level 2 Chargers for Your RAV4 Prime
Selecting a home charger mostly comes down to amperage and smart features. The RAV4 Prime maxes out its charging rate at 32 amps. Buying a 32-amp charger works perfectly for this car. However, many buyers opt for a 40-amp or 48-amp charger anyway. While it won’t charge the RAV4 Prime any faster, it future-proofs your garage for larger electric vehicles down the road.
Look for well-reviewed brands like ChargePoint, JuiceBox, or Grizzl-E. Features like WiFi connectivity allow you to track your electricity costs directly from your phone. Always hire a licensed electrician to install the required 240-volt circuit, often referred to as a NEMA 14-50 outlet.
[Products Worth Considering]
【7KW Efficient Charging】VDLPOWERVP level 2 charger is equipped with NEMA 14-50 Plug(220V/240V), it offers 32A current and up7KW output. It will greatly shorten your charging time.
[Up to 6X Faster Charging Speed via the NEMA 14-50 plug (32 amp)]: Provides up to 24 miles/hour charging speed via the NEMA 14-50 plug (32 amp). Professional installation recommended for optimal safety and performance. [Use the 5-15P Adapter]: 1. The RV Adapter doesn't work for EV chargers, please choose the EV adapter. 2. It will become slow level 1 ev charging and some cars may drop to 12A, the max charging rate is 1.32-1.8kW(110V*12A-120V*15A).
【AIXINE INNOVATION】Refined through 8 years of continuous innovation,AIXINE dedicated to creating a safe,smart,and sustainable living experience for eco-conscious households.
What Do RAV4 Prime Owners Want to Know About Charging?
New owners often wonder if the upgrade to Level 2 is strictly necessary. If you only drive 20 miles a day and park your car for 12 hours every night, the standard Level 1 cord plugged into a regular wall outlet will keep your battery full. But if you frequently drain the battery’s 42-mile range and want to avoid buying gas, the Level 2 upgrade is highly recommended.
Tips for Maximizing Charging Efficiency and Battery Life
Plug-in hybrid batteries are designed to last the lifespan of the car, but good habits help maintain their capacity over time. Check your charging cables occasionally for excessive heat or wear. If you use public chargers, do not stay plugged in for hours after the battery is full. Using a smart charger at home allows you to set charging schedules so the car finishes charging right before you leave for work, which is slightly better for battery chemistry than letting it sit at 100% all weekend.
Frequently Asked Questions
How Long to Charge RAV4 Prime on Level 2?
It takes between 2.5 and 4.5 hours to fully charge the RAV4 Prime on a Level 2 charger, depending on the capacity of your specific car’s onboard hardware.
How Fast Does Level 2 Charging Take?
A Level 2 charger provides power at a rate of roughly 9 to 18 miles of driving range per hour.
Can a RAV4 Prime Use a Level 2 Charger?
Yes. The RAV4 Prime has a standard J1772 charging port that is completely compatible with Level 2 home and public charging stations.
How Fast Can You Charge a RAV4 Prime?
The absolute fastest you can charge a RAV4 Prime is 2.5 hours. The car does not support DC Fast Charging (Level 3), so Level 2 is the maximum speed.
Conclusion
Upgrading to a Level 2 charger transforms how you use the Toyota RAV4 Prime. By cutting the charge time down to a few hours, you can maximize your daily electric range and drastically reduce your trips to the gas station. Just verify which onboard charger your model year has, hire an electrician to install a 240V outlet, and pick a smart charger that fits your budget.
