If your Toyota RAV4 engine cover feels stuck, do not pry it up with a screwdriver or yank from one corner. Many RAV4 top engine covers use rubber grommets, clips, or simple mounting points, but the exact layout can vary by model year, engine, and market.
This guide shows you how to remove the cover safely, what to inspect once it is off, and how to reinstall it without cracked plastic, broken clips, or annoying engine-bay rattles.
Quick Answer
To remove a Toyota RAV4 engine cover, let the engine cool, check for bolts or clips, grip the cover with both hands, and pull straight upward with steady pressure. If one side sticks, stop and lift one mounting point at a time instead of twisting or prying.
Key Takeaways
- Let the engine cool before touching the cover or nearby parts.
- Check for bolts, clips, wiring, hoses, or unusual fasteners before pulling.
- Lift straight upward with both hands and steady pressure.
- Stop and inspect again if the cover feels locked in place.
- Replace damaged clips or rubber grommets before reinstalling the cover.
At a Glance
| Time Required | 5–10 minutes for a simple top engine cover |
| Difficulty | Easy |
| Tools Needed | Work gloves, flashlight, clean rag, plastic trim tool if needed |
| Cost | $0 unless clips, grommets, or mounts are damaged |
Before You Remove the Cover
RAV4 engine cover layouts can vary by model year, engine, trim, and market. A gas model, hybrid model, plug-in hybrid model, or older non-U.S. diesel model may not have the same cover shape or mounting points.
Before pulling, take 30 seconds to inspect the cover from every side. If you see screws, attached wiring, sensors, hoses, or anything that looks different from a simple cosmetic cover, stop and check your year-specific Toyota owner manual or a repair guide before removing it.
Warning: On hybrid or plug-in hybrid RAV4 models, do not remove orange high-voltage covers, unplug hybrid-system connectors, or touch orange cables. If you are not sure what a component is, leave it alone and check the official manual or ask a qualified technician.
| What you see | What it may mean | What to do before pulling |
|---|---|---|
| Simple plastic top cover with no visible screws | Likely held by rubber grommets or clips | Grip both sides and lift straight upward with steady pressure. |
| Visible bolts, screws, or unusual clips | Model-specific fasteners may be holding the cover | Remove or release fasteners only after confirming the correct method. |
| Orange cables, orange covers, or hybrid labels nearby | High-voltage hybrid or plug-in hybrid components may be in the engine bay | Do not touch them. Check the manual or ask a qualified technician. |
| Older diesel cover with different markings | Non-U.S. or older market-specific layout may differ | Check the correct repair guide for that engine before forcing the cover. |
Note: Some older non-U.S. RAV4 diesel models used D-4D engines, so their cover markings and layout may differ from many U.S.-market gas and hybrid models.

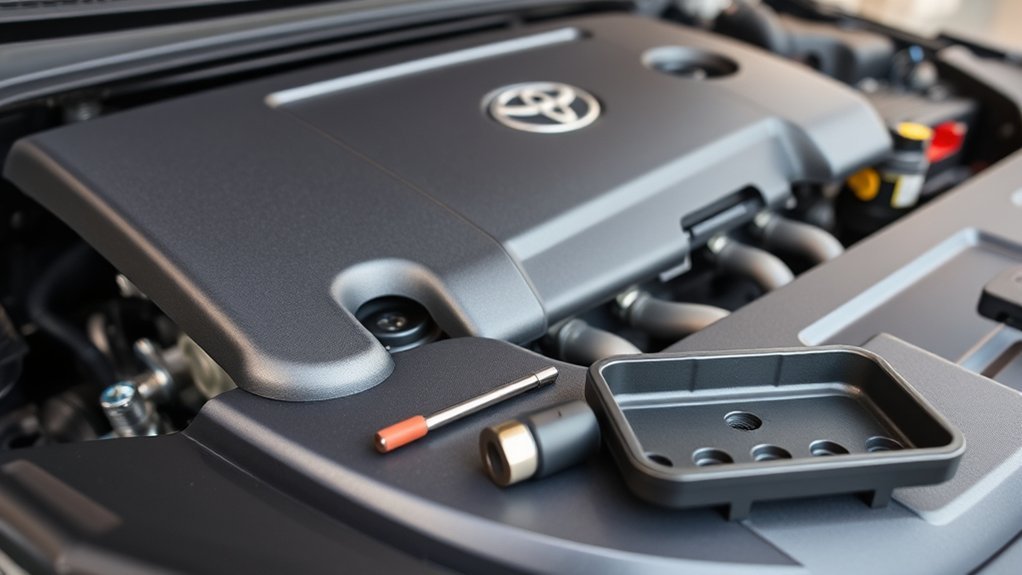

Essential Tools for Engine Cover Removal
Most simple top-cover removal jobs do not require special tools. Your hands usually do the work if the cover is only seated on rubber mounts or clips. Still, keep a few basic items nearby so you do not reach for the wrong tool and damage the plastic.
Start with a clean work area and good light. Let the engine cool before touching parts near the cover. Hot plastic, metal, and hoses can burn your hands.
What You’ll Need
- Work gloves for grip and hand protection
- A flashlight to check hidden clips, fasteners, or wiring
- A plastic trim tool only if a clip needs gentle help
- A clean rag to wipe dirt from the mounting points
Estimated total time: about 5 to 10 minutes for a simple top engine cover.
If the cover feels locked, stop pulling. A stuck grommet is cheaper than a cracked engine cover.
Step-By-Step Guide to Detaching the Engine Cover
Before you start, park on a flat surface, turn the engine off, set the parking brake, and let the engine cool. Open the hood and locate the plastic engine cover. Some older non-U.S. diesel models may show a “D-4D” label, while other RAV4 engines use different cover markings.
- Inspect the cover: Look around the edges for bolts, clips, rubber mounting points, attached wiring, hoses, or sensor connectors.
- Clear the area: Move loose tools, rags, or debris away from the engine bay.
- Check the oil cap area: Make sure the cover is not caught around the oil filler cap or nearby trim.
- Grip the cover: Place both hands on opposite sides of the cover for even control.
- Pull upward: Lift straight up with steady pressure instead of a sharp jerk.
- Work around resistance: If one mount stays attached, lower the cover slightly and lift one mounting point at a time.
- Set the cover aside: Place it on a clean surface with the underside facing up so dirt does not fall onto the engine later.
Warning: Do not force the cover if it will not move. Hidden fasteners, stuck rubber grommets, brittle plastic, or a missed clip can crack the cover or break the mounting hardware.
This method works for many RAV4 top engine covers, but exact mounting points can vary by model year and engine. If your cover has visible screws, unusual clips, attached parts, or heavy resistance, check your owner manual or repair guide before continuing.
Common Mistakes to Avoid When Removing the Engine Cover
The most common mistake is pulling from one edge too hard. That bends the cover, stresses the clips, and can tear rubber grommets out of place. Use both hands and lift upward with controlled pressure.
- Do not pull before checking for fasteners. A missed bolt or clip can crack the cover.
- Do not twist the cover to break it loose. Twisting can damage plastic tabs or mounting posts.
- Do not pry with a metal screwdriver. Metal tools can gouge plastic and scratch nearby parts.
- Do not touch orange hybrid cables or covers. These indicate high-voltage components on hybrid or plug-in hybrid models.
- Do not reinstall the cover on dirty or damaged mounts. Dirt and displaced grommets can cause rattles.
If the cover resists, stop and look again. A stuck rubber grommet, hidden clip, or missed fastener can make the cover feel locked in place.
Pro Tip: Before reinstalling the cover, press each rubber mount or grommet back into place by hand. The cover will seat more evenly and is less likely to rattle.

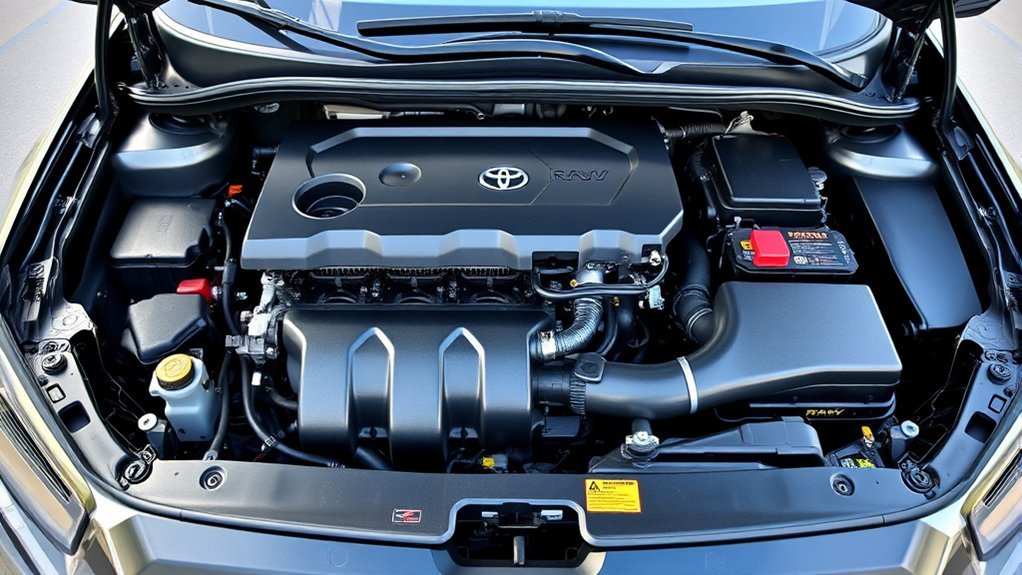

Key Components to Inspect After Removing the Engine Cover
Once the cover is off, use the extra visibility to inspect the parts it normally hides. Start with the oil fill area, valve cover area, visible seams, and nearby seals. Look for fresh wet spots, stains, oil buildup, cracked rubber, or anything that looks loose.
- Engine oil area: Check around the oil cap, filter area, and visible seams for oil residue or fresh leaks.
- Air intake system: Look for loose clamps, cracked ducts, missing clips, or dirt near connections.
- Wiring harnesses: Check for frayed insulation, loose plugs, broken retainers, or rub marks.
- Vacuum lines and hoses: Look for cracks, loose ends, collapsed sections, or brittle rubber.
- Coolant and fluid areas: Watch for wet spots, dried residue, sweet smells, or staining around hoses and fittings.
- Mounting hardware: Inspect every rubber grommet, clip, and post before the cover goes back on.
Small old stains do not always mean you have a major problem. Fresh fluid, strong smells, smoke, warning lights, or a leak that returns after cleaning should be checked by a qualified mechanic.
Note: Look under the removed cover before reinstalling it. The underside can show where each grommet lines up with its mounting post, which helps you seat the cover without guessing.
How to Reinstall the Engine Cover
Reinstalling the cover takes the same care as removing it. First, check that each rubber grommet, clip, and mounting point sits in the correct place. Wipe dirt from the mounts so the cover can seat cleanly.
- Align the cover: Match each mounting point with its stud, clip, or grommet.
- Press straight down: Use your palms to apply even pressure over each mount.
- Check the fit: Confirm the cover sits flat and does not rock.
- Check for trapped parts: Make sure no hose, wire, rag, or tool is under the cover.
- Listen for movement: Start the engine only after the cover feels secure, then listen briefly with the hood open.
A loose engine cover can rattle, vibrate, or rub nearby parts. Remove and reseat it if you notice noise after installation.
Troubleshooting Issues During Engine Cover Removal
Although removing the engine cover may look simple, a few issues can slow you down. Use the table below to match the symptom with the likely cause and safest fix.
| Issue | Potential Cause | Troubleshooting Tips |
|---|---|---|
| Stuck engine cover | Clip or grommet still engaged | Lower the cover slightly, inspect each mounting point, then lift one corner at a time. |
| Cover flexes but does not release | Missed fastener, trapped edge, or model-specific clip | Stop pulling and check the edges, oil cap area, and underside where visible. |
| Breaking clips or grommets | Too much force, uneven lifting, or brittle plastic | Use steady upward pressure and replace damaged hardware before reinstalling. |
| Loose fit after reinstalling | Damaged, dirty, or displaced mount | Remove the cover, reseat the grommets, wipe the posts, and press down evenly. |
| Rattle after installation | Cover not seated flat or one mount missed | Turn the engine off, let parts settle, then remove and reinstall the cover. |
| Unexpected resistance near hybrid parts | Nearby high-voltage or model-specific components | Do not touch orange cables or high-voltage covers. Check the correct manual or ask a professional. |
If a clip breaks, do not ignore it. A loose cover can vibrate, create noise under the hood, or rub nearby parts. Replace damaged hardware before you treat the job as finished.
Frequently Asked Questions
How do I remove the engine cover on a Toyota RAV4?
Grip the engine cover with both hands and pull upward with steady pressure. If one side sticks, stop and work around the cover one mounting point at a time. Always check for bolts, clips, attached wiring, or unusual fasteners before pulling.
Why won’t my RAV4 engine cover come off?
The most likely causes are a stuck rubber grommet, a hidden clip, a missed fastener, or a cover edge caught near another part. Do not force it. Lower the cover, inspect each corner, and check your model-specific manual if anything looks unusual.
Can I remove the engine splash shield?
Yes, you can remove the engine splash shield if you need access from underneath the vehicle, but it is a separate job from removing the top engine cover. Work on level ground, use rated jack stands, and never rely on a jack alone. Remove the clips or bolts carefully, keep the hardware organized, and reinstall the shield.
How do I open the engine bay on my RAV4?
Pull the hood release lever inside the cabin, then move to the front of the vehicle. Lift the hood slightly, release the safety latch under the front edge, raise the hood, and secure it with the prop rod if your model uses one.
Should I drive without the engine cover?
You can often drive a short distance without the cosmetic top engine cover if nothing else was disconnected or left loose, but reinstall it when possible. Never drive if removing the cover exposed damaged wiring, loose parts, or a fluid leak.
What should I check before buying a used RAV4?
Review maintenance records, check the vehicle history, inspect for leaks or warning lights, and get a pre-purchase inspection. Also check the VIN through the official Toyota recall lookup or the NHTSA recall lookup before buying or driving the vehicle, especially with older models.
Conclusion
Removing a Toyota RAV4 engine cover is a simple job when the cover is only seated on rubber grommets or clips. The key is to inspect before you pull, lift straight upward with both hands, and stop if the cover feels locked in place.
Before closing the hood, confirm every grommet is seated, the cover sits flat, and no tools or rags are left in the engine bay. If you find fresh fluid, damaged wiring, broken mounts, or a cover that will not reinstall securely, fix that issue before driving normally.
